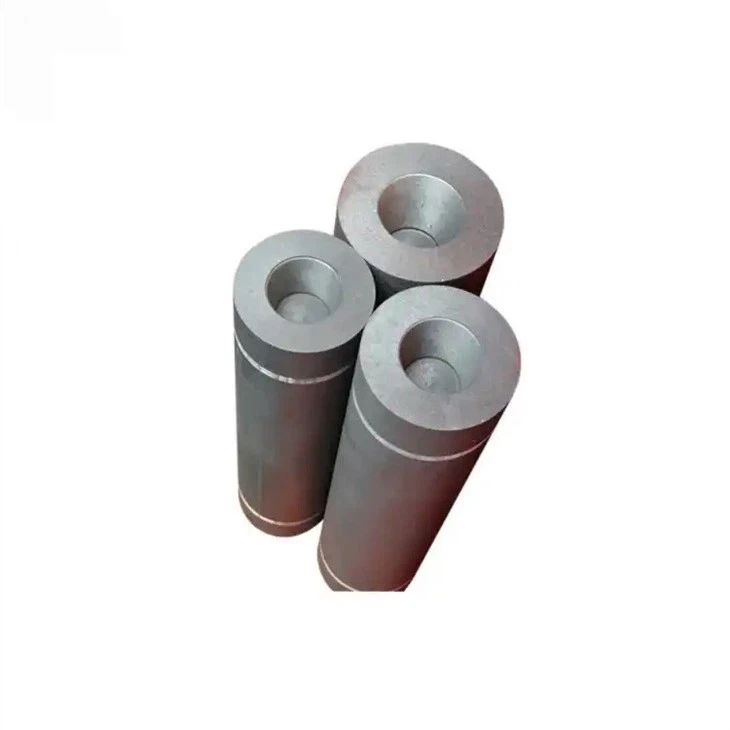

UHP Ultra Graphite Electrode

UHP Ultra Graphite Electrode is a high-quality product that has become essential for various industries, such as steelmaking, nonferrous metal smelting, and silicon carbide production, among others. These electrodes are made from ultra-high-power graphite and have outstanding properties that...

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

One of the significant advantages of UHP Ultra Graphite Electrode is its high thermal conductivity. The electrodes can withstand high temperatures without getting deformed or damaged. Besides, it has a low coefficient of thermal expansion, which makes it highly durable. This product is, therefore, not only efficient but also cost-effective in the long run.

Name		Unit	Nominal Diameter
			UHP		HP		RP
			≤Φ400	≥Φ450	≤Φ400	≥Φ450	≤Φ300	≥Φ350
Resistivity	Electrode	ΜΩ · m	≤5.5		≤6.5		≤8.5
	Nipple		≤4.5		≤5.5		≤6.5
Flexural Strength	Electrode	MPa	≥11.0		≥10.5	≥9.8	≥8.5	≥7.0
	Nipple		≥20.0		≥16.0		≥15.0
Elastic Modulus	Electrode	GPa	≤14.0		≤12.0		≤9.3
	Nipple		≤18.0		≤16.0		≤14.0
Density	Electrode	g / cm3	≥1.66	≥1.67	≥1.62	1.6	≥1.53	≥1.52
	Nipple		≥1.75		≥1.73		≥1.69
Coefficient of Thermal Expansion	Electrode	10-6 / ºC	≤1.5		≤2.4		≤2.9
	Nipple		≤1.4		≤2.2		≤2.8
ASH		%	≤0.3		≤0.3		≤0.5

UHP Ultra Graphite Electrode is highly resistant to oxidation and has low ash content. This makes it environmentally friendly and helps in reducing emissions. As a result, industries that use this product can meet strict environmental regulations without compromising on performance.

UHP Ultra Graphite Electrode is an excellent product that has significant benefits for industries that require high-temperature applications. It is durable, efficient, cost-effective, and environmentally friendly. As more industries continue to embrace this technology, we can expect to see more innovations and improvements in the upcoming years.

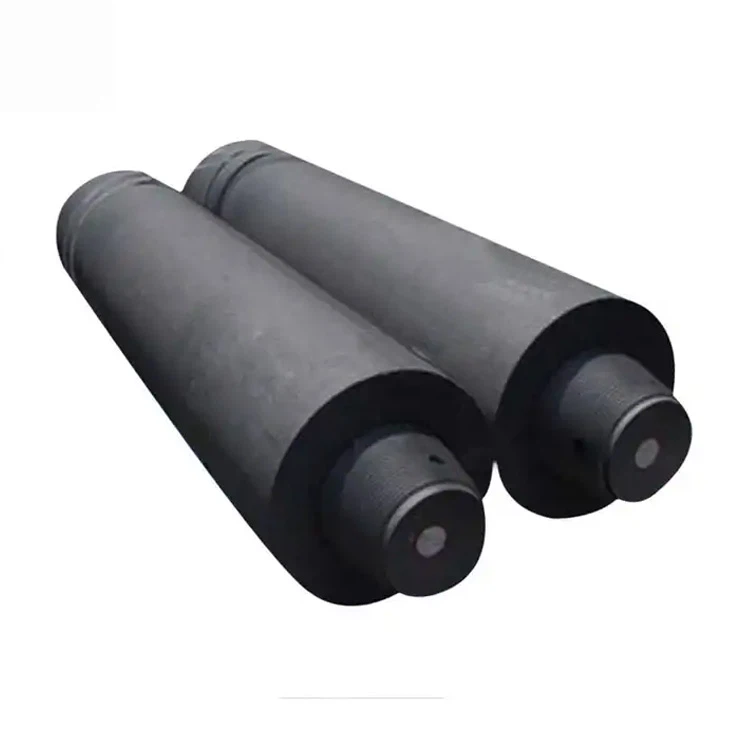

product-1-1
